QUATTRO 650 Robot Arm 4 Axis With Basler Vision Tracking System

Name: QUATTRO 650 Robot Arm 4 Axis With Basler Vision Tracking System
Brand: omrom
Price: 1 USD

China QUATTRO 650 Robot Arm 4 Axis With Basler Vision Tracking System wholesale

Place of Origin : Japan

Brand Name : omrom

Certification : ISO

Packaging Details : OMROM roboter 4 axis QUATTRO 650 with Basler vision system , tracking system and industrial parallel delta robot packing with fumigative box

Supply Ability : 50 Set/Sets per Month

Price : Negotiable

Applicable Industries : Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Pressure vessel, Gear

Condition : New

Vertical Travel(mm) : 650

Horizonal Travel(mm) : 350

Weight : 112KG, 117KG

Power : 24 VDC, 24 VDC:6A 200 to 240VAC

Warranty : 1 Year

Product Name : OMROM roboter 4 axis QUATTRO 650 with parallel delta robot

Type : QUATTRO 650

Payload : 8kg

Reach : 1300mm

Protection class : IP65

Axis : 4 axis

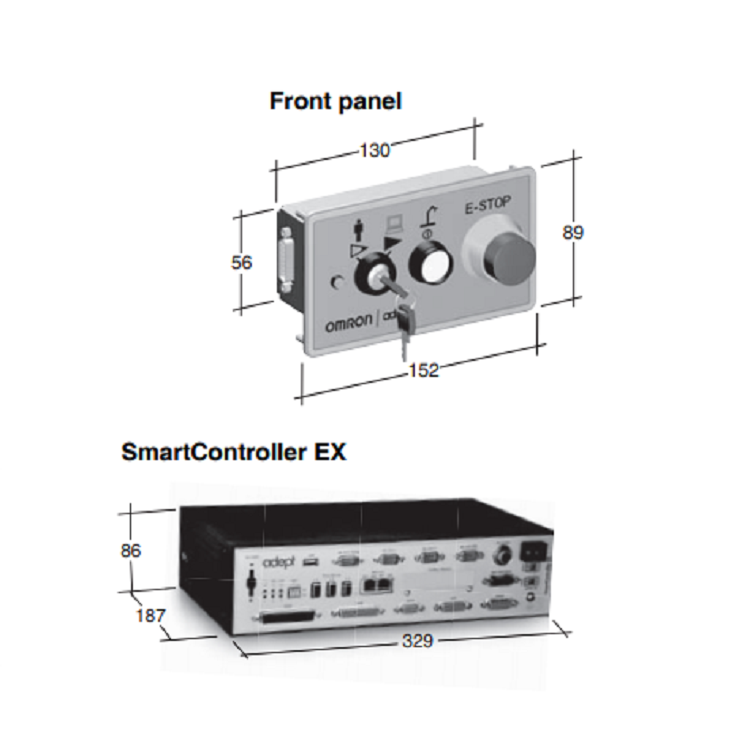

Connectable control : SmartController EX,NJ/NX/NY SERIES*3

Repeatability : ±0.10mm

After Warranty Service : Video technical support, Online support, Spare parts

Local Service Location : None

After-sales Service Provided : Video technical support

Port : shanghai

Contact Now

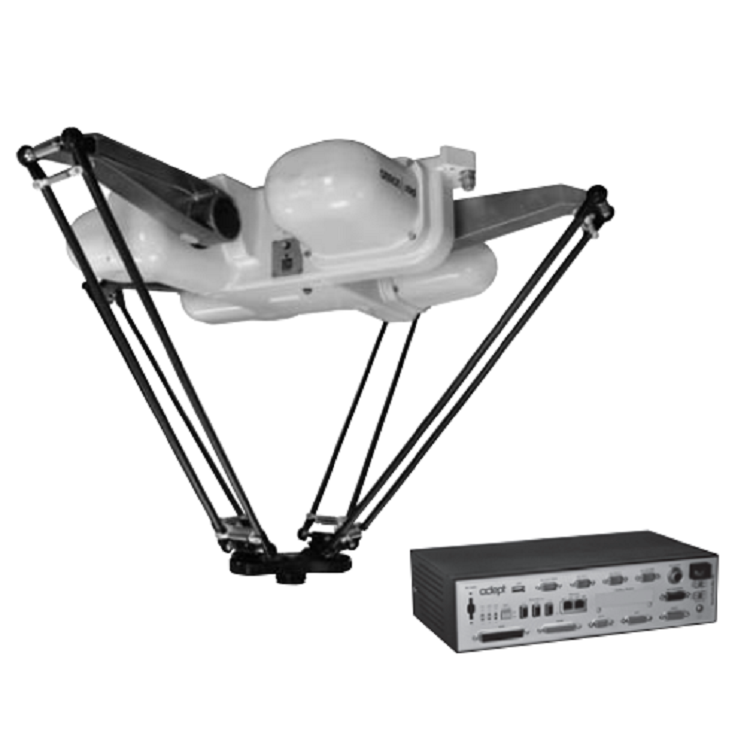

OMROM roboter 4 axis QUATTRO 650 with Basler vision system , tracking system and industrial parallel delta robot

Product image

QUATTRO 650 Robot Arm 4 Axis With Basler Vision Tracking System

Four-axis parallel robot achieves high

speed and high precision

• Ethernet capability to control the robot through the familiar

programming language (IEC 61131-3) of Machine Automation

Controller NJ/NX/NY Series

• Four-axis arm evenly distributes the load on the robot

• Fast and high-precision conveyance and assembly

• Designed with a high payload to support multi-hand (multi-picking)

• Supports fast Pick & Place on a fast conveyor

• Meets the sanitary standards of the United States Department

of Agriculture for prevention of product contamination

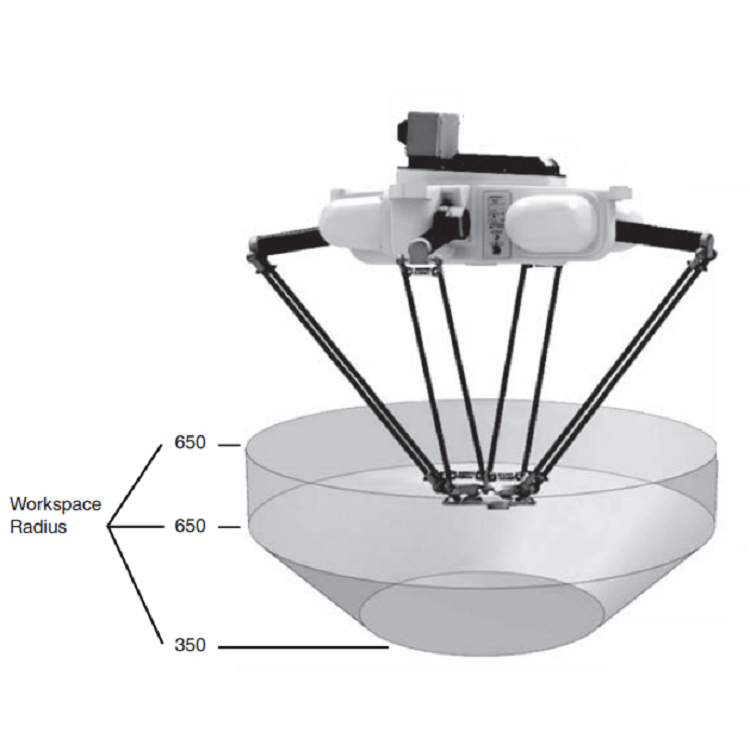

• Maximum working diameter 1,300 mm

• Working height 500 mm

• Maximum payload 15 kg

• Weight 117 kg

QUATTRO 650 Robot Arm 4 Axis With Basler Vision Tracking System

QUATTRO 650 Robot Arm 4 Axis With Basler Vision Tracking System Images
