E05 5kg 6 Axis 800mm Collaborative Robotic Arm Aluminum Alloy

Place of Origin : China

Price : Negotiable

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory

Showroom Location : Egypt, Philippines, India, Mexico, Russia, Spain

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : Motor

Condition : New

Warranty : 1 Year, 1 Year

Product Name : CNC robot arm Han's Collaborative robot arm and arm robot China

Number of axis : 6 axis

Max payload : 5 kg

Maximum reach : 800 mm

Pose repeatability(ISO 9283) : ±0.05mm

Material : Aluminum alloy

Protection rating : IP54

Mounting position : Floor/ Ceiling/Wall

Life time : 30000h

After Warranty Service : Video technical support, Online support, Spare parts

Local Service Location : Egypt, Philippines, India, Mexico, Russia, Spain

After-sales Service Provided : Online support

Port : Shanghai

Contact Now

CNC robot arm Han's Elfin E05 payload 5 Kg 6 axis reach 800 mm Collaborative robot arm and arm robot China

Main Specifications:

Maximum reach:800 mm
Maximum payload:5 kg
Pose repeatability (ISO 9283):± 0.05 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:200W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen

Product Name	CNC robot arm Han's Elfin 5 payload 5 Kg 6 axis reach 800 mm Collaborative robot arm and arm robot China
Application	CNC robot arm Han's Elfin 5 payload 5 Kg 6 axis reach 800 mm Collaborative robot arm and arm robot China; Collaborative robot arm ;CNC robot arm; arm robot China
Model	Elfin 5
Robot Arm
Maximum reach	800 mm
Maximum payload	5 kg
Pose repeatability (ISO 9283)	± 0.05 mm
Number of axes	6
Mounting position	Floor/ Ceiling/Wall
Lifetime	30000h
Weight	17 kg
Protection rating	IP54
Standard	CE, TUV,KSc
Power consumption	200W
Material	Aluminum alloy
Ambient temperature	0-45°C
Environment humidity	20-85%(No condensation)
Power supply	DC 48V
Protocol	CAN bus
A1	±135°
A2	±135°
A3	±135°
A4	±135°
A5	±135°
A6	±135°
Controller
Size	536mm445mm491mm
Weight	20Kg
Cable length	5m
Colour	Black
Protocol	Ethernet,Modbus-RTU/TCP
Power	100-240V/AC,50-60HZ
Protection rating	IP54
I/O port	16 in/16 out
Teach pendant
Size	355mm235mm54mm
Weight	1.8Kg
Screen	12 inch Resistive LCD touch screen
Cable length	4m
Protection rating	IP54
Colour	Orange+black

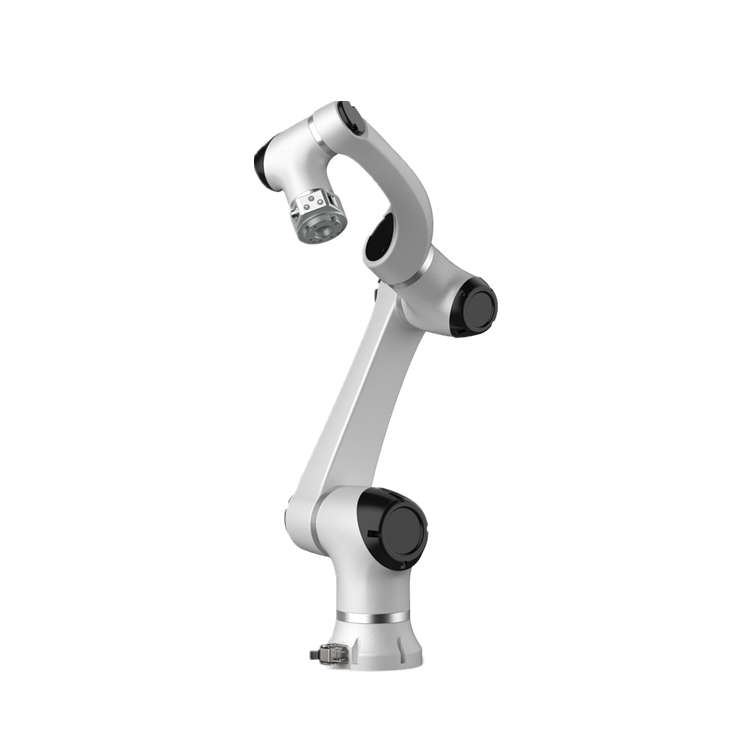

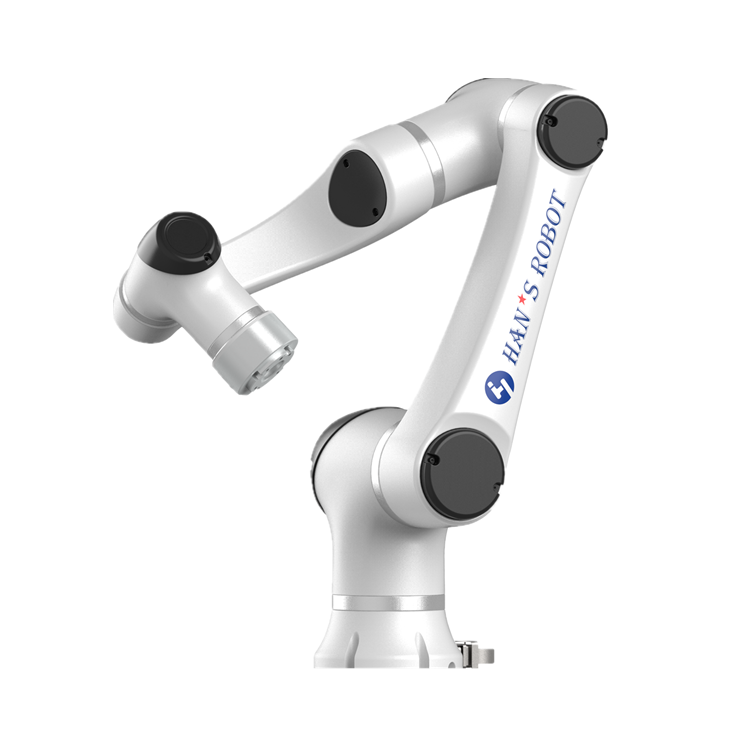

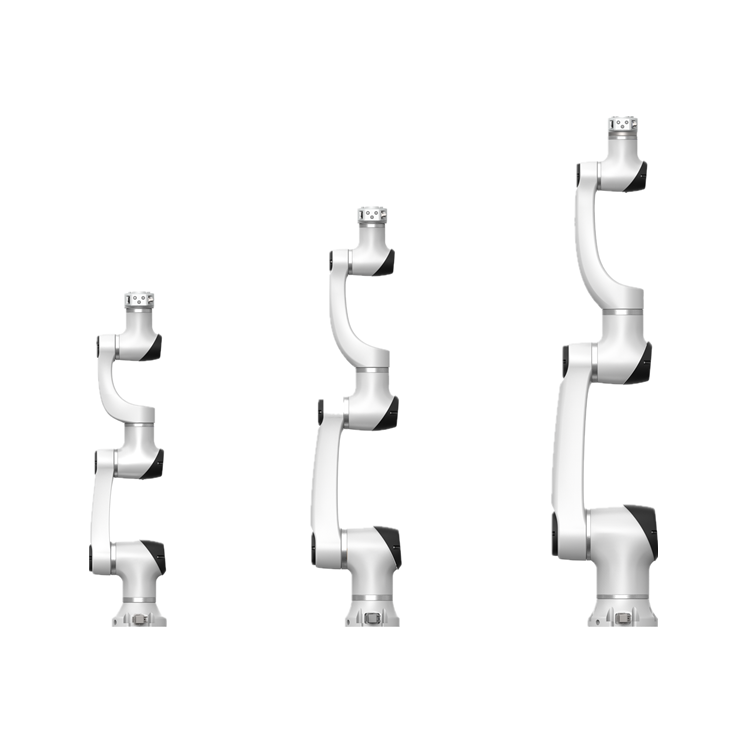

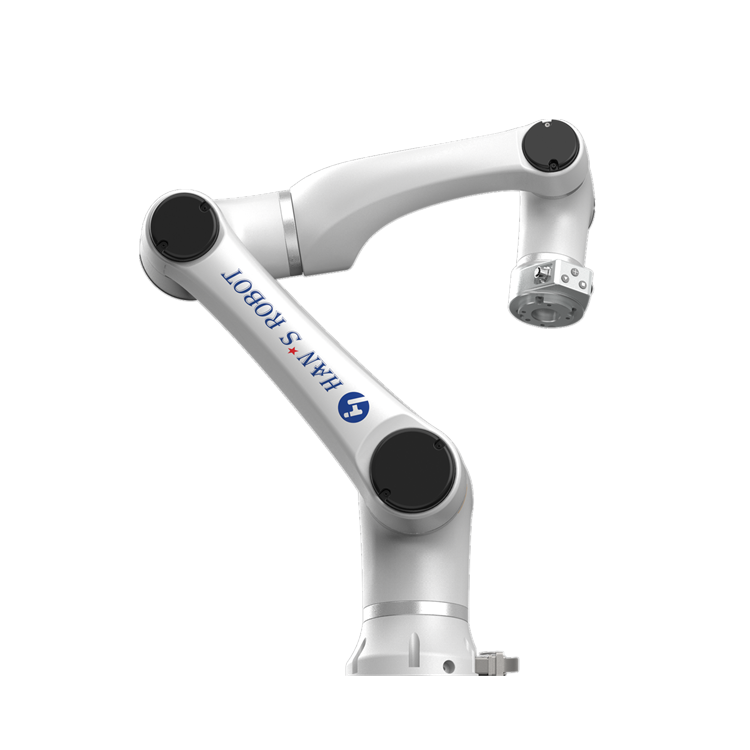

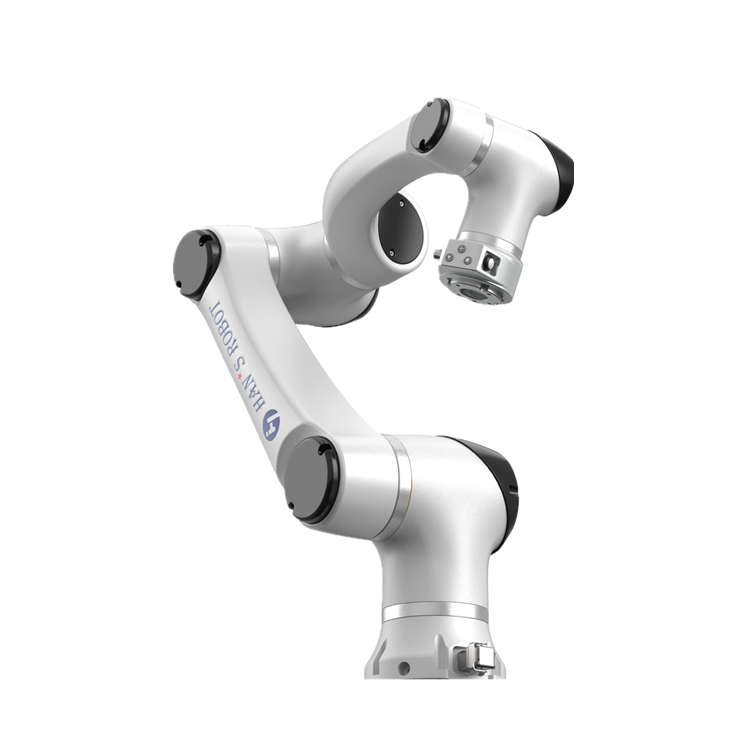

Detailed Images

E05 5kg 6 Axis 800mm Collaborative Robotic Arm Aluminum Alloy

Our Services

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
