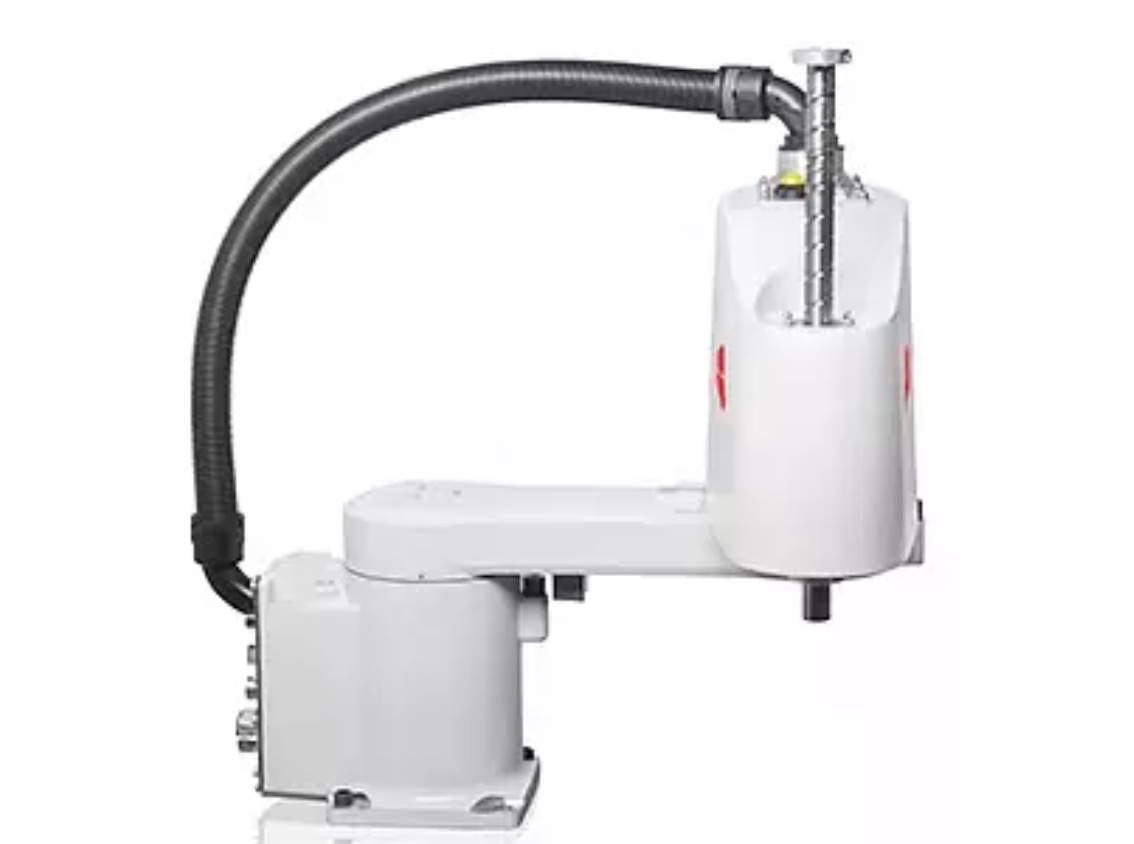

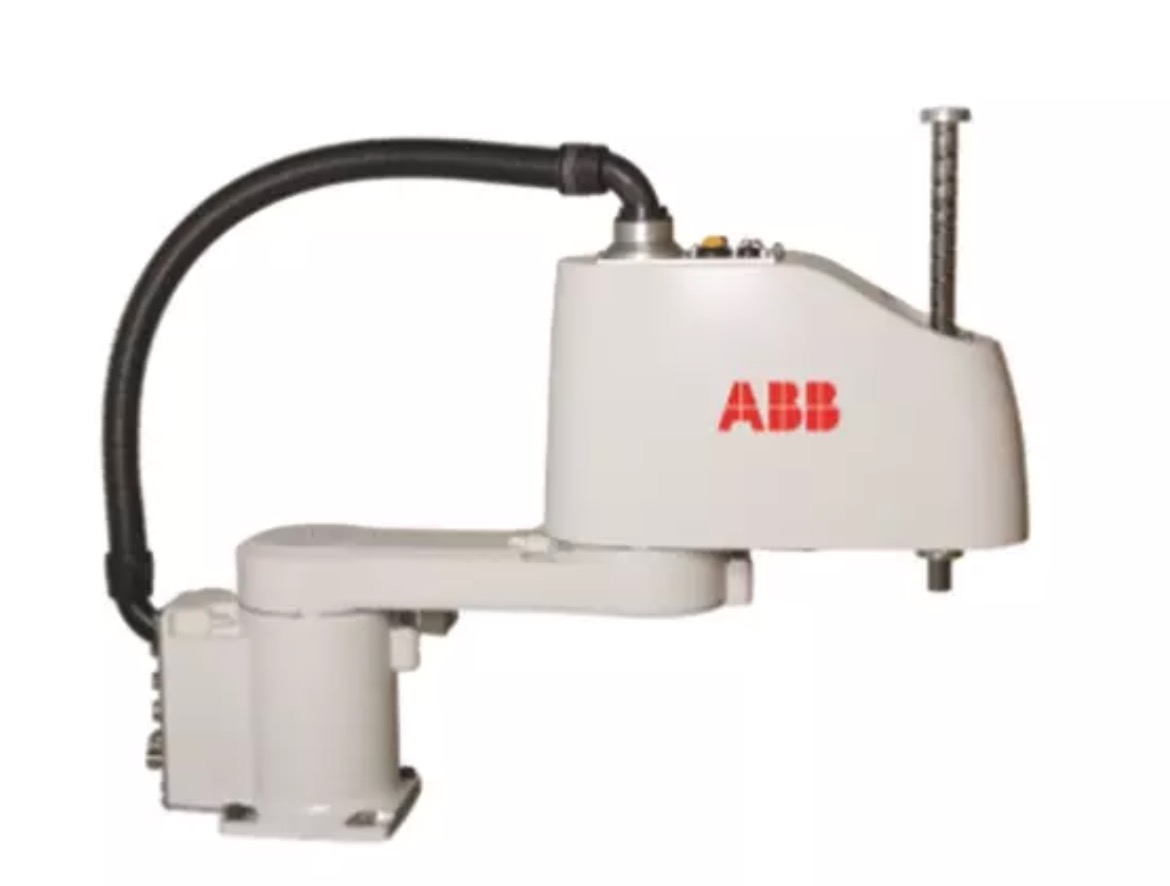

Pick and place scara robot IRB 910SC -3/0.65 for material handling and parts inspection collaborative robot
The IRB 910SC is fast, cost-effective and accurate. In designing its Selective Compliance Articulated Robot Arm (SCARA), or IRB 910SC, ABB has delivered a single arm robot capable of operating in a confined footprint. ABB’s SCARA is ideal for the Small Parts Assembly, Material Handling and parts inspection.
Key features
Variants
With a maximum payload of 6 kg, the IRB 910SC is available in three configurations (IRB 910SC –3/0.45, IRB 910SC – 3/0.55m, and IRB 910SC – 3/0.65). All are modular by design, with different linking arm lengths and have individual reaches of 450 mm, 550 mm and 650 mm, respectively. All members of the SCARA family are tabletop mountable.
Applications
ABB’s SCARA family is designed for a variety of general-purpose applications such as tray kitting, component placement, machine loading/unloading and assembly. These applications require fast, repeatable and articulate point-to-point movements such as palletizing, depalletizing, machine loading/unloading and assembly. ABB’s SCARA family is ideal for customers requiring rapid cycle times, high precision and high reliability for their Small Part Assembly applications and for laboratory automation and prescription drug dispensing.
Main applications:
Small Parts Assembly:
- Screw driving
- Inserting
- Assembly/ disassembly
- Mounting
Material Handling:
- Picking and placing
- Parts transfer
- Parts handling
- Sorting
- Packaging
Inspection:
- Product inspection
- Testing
- Quality control
Features:
- Table top mountable
- Ease of integration
- Custom interfaces
- Modular design
Customer benefits:
- Short cycle times which is achieved by high speed
- High precision which is achieved by superior motion control
- Superb reliability due to reuse and standard proven components
Description:
| item | value |
| Applicable Industries | Other |
| After Warranty Service | Video technical support, Online support, Field maintenance and repair service |
| Local Service Location | None |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year |
| Core Components | PLC |
| Condition | New |
| Place of Origin | China |
| | Shanghai |
| Brand Name | ABB |
| Weight | 25.5 kg |
| Power | 380V |
| Certification | CE |
| Warranty | 1 Year |
| | Online support |

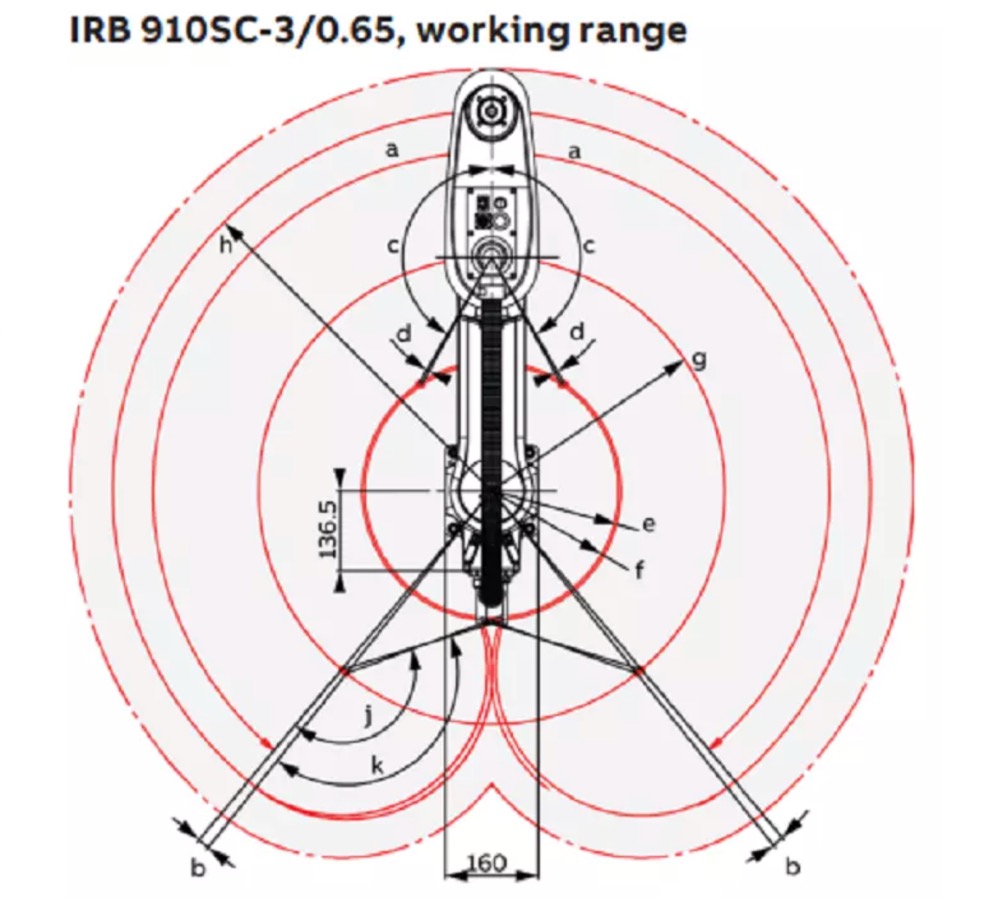

| Reach (m) | 0.65 |
| Payload (kg) | Rated: 3, Max: 6 |
| Number of axes | 4 |
| Protection | IP20 |
| Mounting | Table |
| Controller | IRC5 Compact |
| Integrated signal | 10 signals on wrist |
| Integrated air supply | 4 air on wrist (5 bar) |
| 1 kg picking cycle | 0.385 s |
| Position repeatability | Axis 1 + Axis 2 ±0.015(mm)/Axis 3 ±0.01(mm)/ Axis 4 (±0.005°) |
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.
Application:
dispensing, finishing, material handling, pick and place, assembly, palletizing, 3d printing, and remote tcp.
ONE Industrial robot china KR 16 R2010 payload of 16 kg welding machine robot arm manipulator packing with fumigation wooden frame, WG:260KG
