Jaka Cobot Zu 3 Zu7 Zu12 Zu18 6 axis with cobot welding with controller and teach pendent universal cobot

Name: Jaka Cobot Zu 3 Zu7 Zu12 Zu18 6 axis with cobot welding with controller and teach pendent universal cobot
Brand: JAKA
Price: 1 USD

China Jaka Cobot Zu 3 Zu7 Zu12 Zu18 6 axis with cobot welding with controller and teach pendent universal cobot wholesale

Place of Origin : Shanghai, China

Brand Name : JAKA

Application : Pick and place ,welding ,handling,spraying

Features : Hand Guiding

Condition : New

Warranty : 1 year

Power : 400W, 200w

Voltage : DC 48V

Applicable Industries : Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Printing Shops, Food & Beverage Shops

Weight (KG) : 13.5

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Pressure vessel, Gear

Product Name : Jaka Cobot Zu 3 6 axis with cobot welding universal cobot

Type : Zu 3 Zu7 Zu12 Zu18

Weight : 13.5KG

Payload : 3kg

Reach : 587mm

Axis : 6

Repeatability : ±0.03

Tool speed : 1.5m/s

IP specigfication : IP54

Packaging Details : Han's E5 cobot robot and robot arm 6 axis with robot arm controller packaged with hard paper box
Package info:(two box)
5kg cobot arm GW:33KG 790*560 *370mm
controller +teach pendent GW:29Kg 610*610*340mm

Port : Shanghai

Supply Ability : 50 Set/Sets per Month

Price : Negotiable

Contact Now

Jaka Cobot Zu 3 Zu7 Zu12 Zu18 6 axis with cobot welding with controller and teach pendent universal cobot

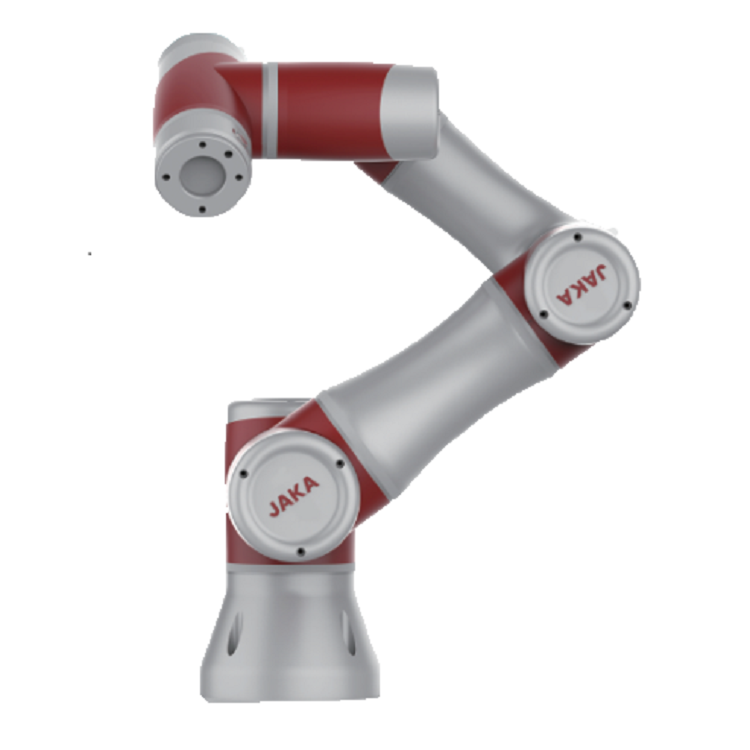

Product image

Jaka Cobot Zu 3 Zu7 Zu12 Zu18 6 axis with cobot welding with controller and teach pendent universal cobot

Product Description

Safer work
With Elfin robots, there is no need to pay extra for safe operation the same as traditional robots. The robots have high collaborative performance and can perform a protective stop immediately when they encounter resistance, ensuring the safety among co-worker, workpieces, and production equipment.
More Flexible Deployment
Elfin robots can be mounted at any angle and installed anywhere to minimize the impact on the production lines. Redeployment requires very short time and is very suitable for small batches, customized and short-cycle production, which is the best choice for automation transformation.
Easier Operation
Elfin robots can be easily teached by moving the end of the arm to the desired position or desired trajectory,which is greatly saves the programing time. 10 minutes is absolutely enough for building one simple pick and place program.
Fast, Stable Ether CAT bus communication
The controller and robot joint adopt industrial EtherCAT communication, which enables the system to have excellent control performance and strong an-interference ability.

Specifications
type	E3	E5	E5-L	E10	E15
weight	17kg	23KG	24KG	40KG	45KG
payload	3kg	5kg	3.5kg	10kg	15kg
reach	590mm	800mm	950mm	1000mm	700mm
power	100W in typical cycle	180W in typical cycle		350W in typical cycle	450W in typical cycle
joint range	±360°
joint speed	J1-J4 180°/S J5-J6 200°/S	J1-J4 180°/S J5-J6 200°/S	J1-J4 180°/S J5-J6 200°/S	J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S	J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S
tool speed	2m/s
repeatability	±0.05mm/±0.03mm(under normal conditions)
degree of freedom	6
control box size	536445319mm
end I/O port	digital input:3,digital output:3,analog input:2
control box I/O port	digital input:16,digital output:16, analog input:2,analog output:2
I/O source	24V 2A
communication	TCP/IP/MODBUS
programming	graphical programming,remote process call
IP classification	IP54/IP66
collaborative operation	10 advanced configurations for safety
main material	aluminum alloy
working temperature	0-50℃
power input	200-240V AC,50-60Hz
cable	cable to connect the control box:5m,cable to connect teach pendant:5m

Jaka Cobot Zu 3 Zu7 Zu12 Zu18 6 axis with cobot welding with controller and teach pendent universal cobot Images
