cobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and place

Name: cobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and place
Brand: jaka
Price: 1 USD

China cobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and place wholesale

Place of Origin : Shanghai, China

Brand Name : jaka

Application : picking and packing robot arm

Condition : New

Warranty : 1 year

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops

Weight (KG) : 70

Showroom Location : Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Argentina

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Bearing, Gearbox

Product Name : JAKA Ai 12 cobot

Number of axis : 6 axis

Max payload : 12 kg

Maximum reach : 1327 mm

Pose repeatability(ISO 9283) : ±0.03mm

Temperature range : 0-50℃

Protection rating : IP54

Certificate : CR, CE, 15066

Teach pendant : MT(PAD/Mobile)APP

Packaging Details : One cobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and place packing with fumigation wooden frame, WG: 41 KG
Controller and other parts packing with brown box, WG: 25 KG
Total WG:66 KG(>VG)

Port : Shanghai

Supply Ability : 5 Set/Sets per Month

Price : Negotiable

Contact Now

cobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and place

Main Specifications
Maximum reach: 1327 mm
Maximum payload: 12 kg
Pose repeatability (ISO 9283):± 0.03 mm
Number of axes:6
Mounting position:any angle
Lifetime:30000h
Standard:CE, TUV,KSc

Power consumption:500W
Power supply:DC 24V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen

Product Description

Product Name	cobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and place
Application	cobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and place
Model	JAKA Ai 12 cobot
Robot Arm
Maximum reach	1327mm
Maximum payload	12 kg
Pose repeatability (ISO 9283)	± 0.03mm
Number of axes	6
Certificate	CR, CE, 15066
Temperature range	0-50℃
Weight	41 kg
Protection rating	IP54
Standard	CE, TUV,KSc
Power consumption	500W
Material	Aluminum alloy
Ambient temperature	0-50°C
Environment humidity	20-85%(No condensation)
Power supply	DC 48V
Protocol	CAN bus
A1	±270°
A2	-85°,+265°
A3	±175°
A4	-85°,+265°
A5	±270°
A6	±270°

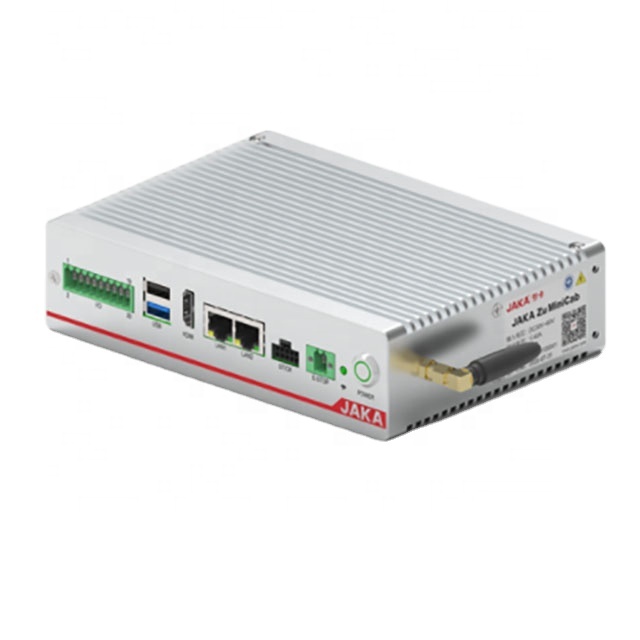

Controller
Size	410mm307mm235mm
Weight	12Kg
Cable length	6m
Colour	silver and red
Protocol	Ethernet,Modbus-RTU/TCP
Power	100-240V/AC,50-60HZ
Protection rating	IP44
I/O port	16 in/16 out
Teach pendant MT(PAD/Mobile)APP
Size	355mm235mm54mm
Weight	1.8Kg
Screen	12 inch Resistive LCD touch screen
Cable length	6m
Protection rating	IP54
Colour	silver and red
