collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis

Xiangjing (Shanghai) M&E Technology Co., Ltd
Contact Now

collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis

Place of Origin : Shanghai, China

Brand Name : Aubo

Product Name : Collaborative robot AUBO i3 6 axis mini industrial cobot

Number of axis : 6 axis

Max payload : 3 kg

Maximum reach : 832 mm

Pose repeatability(ISO 9283) : ±0.02mm

Material : Aluminum alloy

Protection rating : IP54

Mounting position : Floor/ Ceiling/Wall

Life time : >30000h

Warranty : 1 Year, 1 Year

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Engine, Bearing, Gearbox, Pump

After-sales Service Provided : Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : United States, France, Germany, Viet Nam, Indonesia, Australia, Argentina, Algeria

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Showroom Location : United Kingdom, United States, France, Viet Nam, Philippines, Brazil, Peru, Indonesia, Russia, Argentina, Japan, Malaysia

Packaging Details : One collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis packing with fumigation wooden frame, WG: 15.5 KG
Controller and other parts packing with brown box, WG: 30 KG
Total WG: 45.5 KG(>VG)

Port : Shanghai

Supply Ability : 5 Piece/Pieces per Month

Price : Negotiable

Contact Now

collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis

Main Specifications
Maximum reach:832 mm
Maximum payload:3kg
Pose repeatability (ISO 9283):± 0.02 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:150W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen

Product Name collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis
Application collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis ,main application welding assenbly and stacking ,palletizing collaborative.
Model Aubo i3
Robot Arm
Maximum reach 832 mm
Maximum payload 3 kg
Pose repeatability (ISO 9283) ± 0.02 mm
Number of axes 6
Mounting position Floor/ Ceiling/Wall
Lifetime 30000h
Weight 15.5 kg
Protection rating IP54
Standard CE, TUV,KSc
Power consumption 150W
Material Aluminum alloy
Ambient temperature 0-45°C
Environment humidity 20-85%(No condensation)
Power supply DC 48V
Protocol CAN bus
A1 ±175°
A2 ±175°
A3 ±175°
A4 ±175°
A5 ±175°
A6 ±175°
Controller
Size 380mm*350mm*258mm
Weight 15Kg
Cable length 5m
Colour Black
Protocol Ethernet,Modbus-RTU/TCP
Power 100-240V/AC,50-60HZ
Protection rating IP54
I/O port 16 in/16 out
Teach pendant
Size 355mm*235mm*54mm
Weight 1.57Kg
Screen 12 inch Resistive LCD touch screen
Cable length 4m
Protection rating IP54
Colour Orange+black

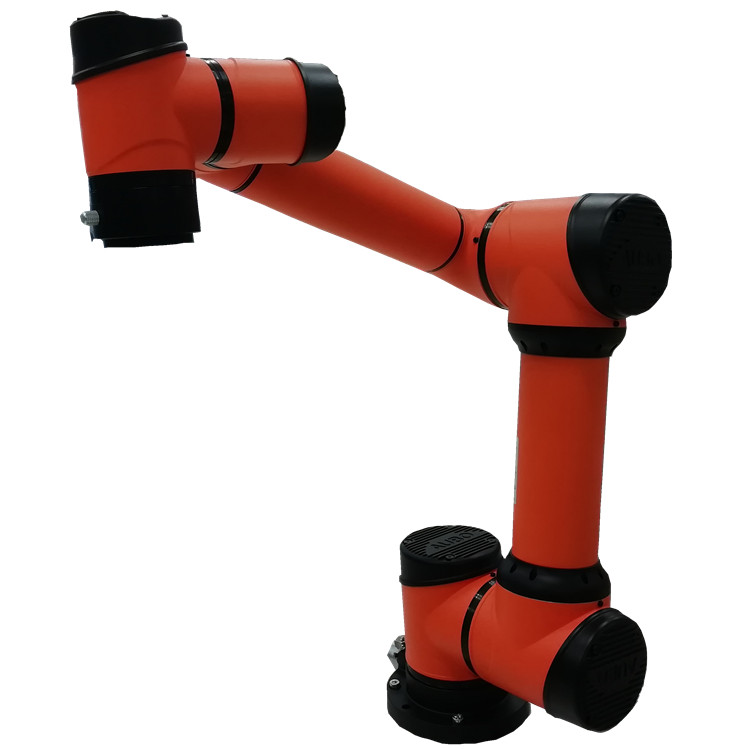

Detailed Images

collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axiscollaborative robot AUBO i3 payload 3kg picking and packing robots 6 axiscollaborative robot AUBO i3 payload 3kg picking and packing robots 6 axiscollaborative robot AUBO i3 payload 3kg picking and packing robots 6 axiscollaborative robot AUBO i3 payload 3kg picking and packing robots 6 axiscollaborative robot AUBO i3 payload 3kg picking and packing robots 6 axiscollaborative robot AUBO i3 payload 3kg picking and packing robots 6 axiscollaborative robot AUBO i3 payload 3kg picking and packing robots 6 axiscollaborative robot AUBO i3 payload 3kg picking and packing robots 6 axiscollaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis

collaborative robot AUBO i3 payload 3kg picking and packing robots 6 axis

Our Services

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
