4 Axis Industrial Collaborative Robot Arm 1130mm Building Material Shops

Name: 4 Axis Industrial Collaborative Robot Arm 1130mm Building Material Shops
Brand: omrom
Price: 1 USD

China 4 Axis Industrial Collaborative Robot Arm 1130mm Building Material Shops wholesale

Place of Origin : Japan

Brand Name : omrom

Certification : ISO

Packaging Details : Basler vision system , tracking system and basler camera with Hornet 565 4 axis industrial parallel delta robot price packing with fumigative box

Supply Ability : 50 Set/Sets per Month

Price : Negotiable

Applicable Industries : Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : PLC, Pressure vessel, Gear

Condition : New

Vertical Travel(mm) : 275

Horizonal Travel(mm) : 565

Weight : 52KG, 52KG

Power : 24 VDC, 24 VDC:6A 200 to 240VAC

Warranty : 1 Year

Product Name : Hornet 565 4 axis industrial parallel delta robot price

Type : Hornet 565

Payload : 8kg

Reach : 1130mm

Protection class : IP65

Axis : 3 axis

Connectable control : SmartController EX,NJ/NX/NY SERIES*3

Repeatability : ±0.10mm

After Warranty Service : Video technical support, Online support, Spare parts

Local Service Location : None

After-sales Service Provided : Video technical support

Port : shanghai

Contact Now

Basler vision system , tracking system and basler camera with Hornet 565 4 axis industrial parallel delta robot price

Product image

4 Axis Industrial Collaborative Robot Arm 1130mm Building Material Shops

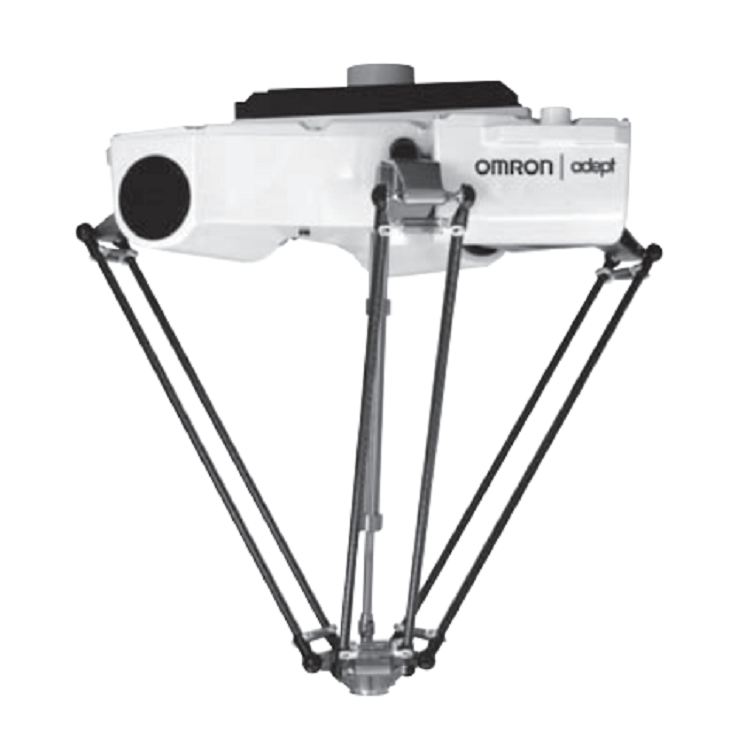

Parallel robot ideal for use in the food and beverage, pharmaceutical, and healthcare industries

• Ethernet capability to control the robot through the familiar programming language (IEC 61131-3) of Machine Automation Controller NJ/NX/NY Series

• The amplifier and controller built into the robot reduces the number of cables

• Tracks up to a conveyor speed of 1.4 m/s

• Designed with a high payload to support multi-hand (multi-picking)

• Supports fast Pick & Place on a fast conveyor

• Helps reduce mounting cost and robot vibration

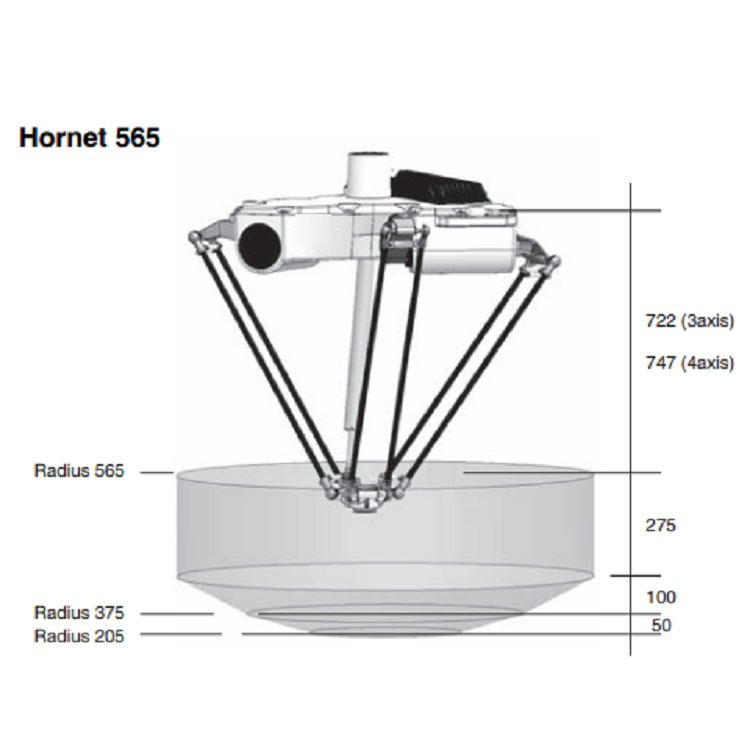

• Maximum working diameter 1,130 mm

• Working height 425 mm

• Maximum payload 8 kg

• Weight 52 kg
