1000mm E10 6 Axis Automatic Painting Robot Arm 10KG

Name: 1000mm E10 6 Axis Automatic Painting Robot Arm 10KG
Brand: Han's robot
Price: 1 USD

China 1000mm E10 6 Axis Automatic Painting Robot Arm 10KG wholesale

Place of Origin : Shanghai, China

Brand Name : Han's robot

Packaging Details : Han's cobot E10 industrial welding robots 6 axis with 10kg payload robot arm and control box5m,cable to connect teach pendant packing with fumigative box

Supply Ability : 100 Set/Sets per Month

Price : Negotiable

Product Name : Han's cobot E10 6 axis automatic collaborative robot arm

Type : E10

Weight : 40KG

Payload : 10kg

Reach : 1000mm

Power : 350W in typical cycle

Joint range : ±360°

Joint speed : 1-J2 120°/S J3-J4 135°/S J5-J6 180°/S

Tool speed : 2m/s

Repeatability : ±0.05mm/±0.03mm(under normal conditions)

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : Motor

After Warranty Service : Video technical support, Online support, Spare parts

Local Service Location : Egypt, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Thailand, Japan, Malaysia, Australia

Applicable Industries : Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Printing Shops, Food & Beverage Shops

Showroom Location : None

Warranty : 1 year

Port : shanghai

Contact Now

Han's cobot E10 arm robot for painting 6 axis automatic collaborative robot arm

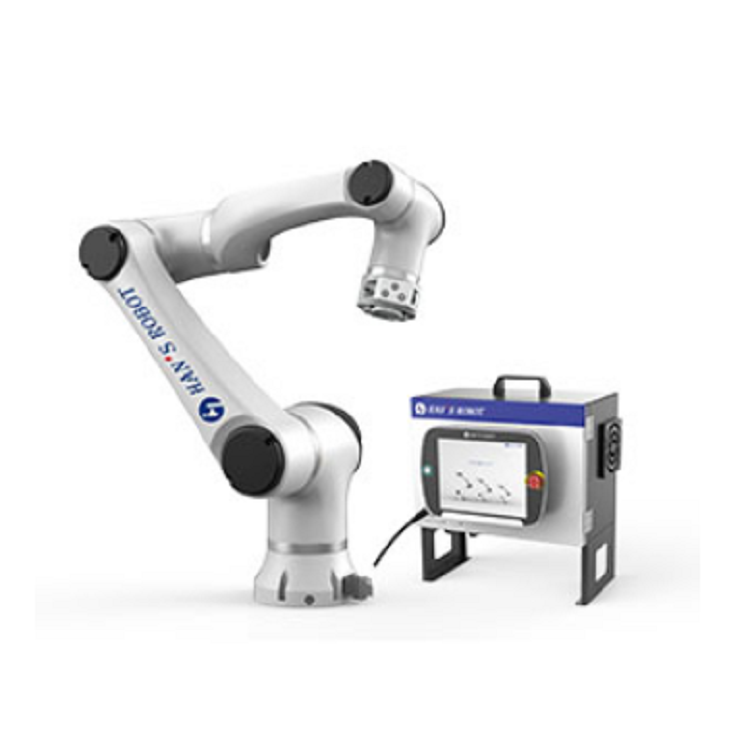

Product image

1000mm E10 6 Axis Automatic Painting Robot Arm 10KG

Safer work
With Elfin robots, there is no need to pay extra for safe operation the same as traditional robots. The robots have high collaborative performance and can perform a protective stop immediately when they encounter resistance, ensuring the safety among co-worker, workpieces, and production equipment.
More Flexible Deployment
Elfin robots can be mounted at any angle and installed anywhere to minimize the impact on the production lines. Redeployment requires very short time and is very suitable for small batches, customized and short-cycle production, which is the best choice for automation transformation.
Easier Operation
Elfin robots can be easily teached by moving the end of the arm to the desired position or desired trajectory,which is greatly saves the programing time. 10 minutes is absolutely enough for building one simple pick and place program.
Fast, Stable Ether CAT bus communication
The controller and robot joint adopt industrial EtherCAT communication, which enables the system to have excellent control performance and strong an-interference ability.

Specifications
type	E3	E5	E5-L	E10	E15
weight	17kg	23KG	24KG	40KG	45KG
payload	3kg	5kg	3.5kg	10kg	15kg
reach	590mm	800mm	950mm	1000mm	700mm
power	100W in typical cycle	180W in typical cycle		350W in typical cycle	450W in typical cycle
joint range	±360°
joint speed	J1-J4 180°/S J5-J6 200°/S	J1-J4 180°/S J5-J6 200°/S	J1-J4 180°/S J5-J6 200°/S	J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S	J1-J2 120°/S J3-J4 135°/S J5-J6 180°/S
tool speed	2m/s
repeatability	±0.05mm/±0.03mm(under normal conditions)
degree of freedom	6
control box size	536445319mm
end I/O port	digital input:3,digital output:3,analog input:2
control box I/O port	digital input:16,digital output:16, analog input:2,analog output:2
I/O source	24V 2A
communication	TCP/IP/MODBUS
programming	graphical programming,remote process call
IP classification	IP54/IP66
collaborative operation	10 advanced configurations for safety
main material	aluminum alloy
working temperature	0-50℃
power input	200-240V AC,50-60Hz
cable	cable to connect the control box:5m,cable to connect teach pendant:5m
